Ultimate Car Audio by JBL.
JBL’s Stadium Series speakers – available in 2″ 3″ 5-1/4″ 6-1/2″ 6″ x 8″ 4″ x 6″ 6″ x 9″ and 3/4″ – bring iconic JBL sound that can only come from a 75-year pedigree of audio excellence to virtually any car on the road. Stadium’s Plus One™ fiberglass woofers deliver high-output deep and robust bass. The high-resolution 3/4″ edge-driven textile dome tweeters deliver soaring highs up to 40kHz. 2″ and 3″ midranges are available to upgrade two-way component systems into three-way. The compact 3″ midrange speakers also offer a perfect plug-and-play solution with a low-frequency response to 300Hz and high sensitivity.
TECHNICAL SPECIFICATIONS :
- Power Handling : 145Wrms, 435W peak
- Sensitivity (@ 2.83V) : 94dB
- Frequency Response : 35Hz – 40kHz
- Voice Coil Diameter : 1-7/16in. (35.5mm)
- Impedance : 3hms
- sensitivity: 94 dB at 2.83 volts
GENERAL SPECIFICATIONS :

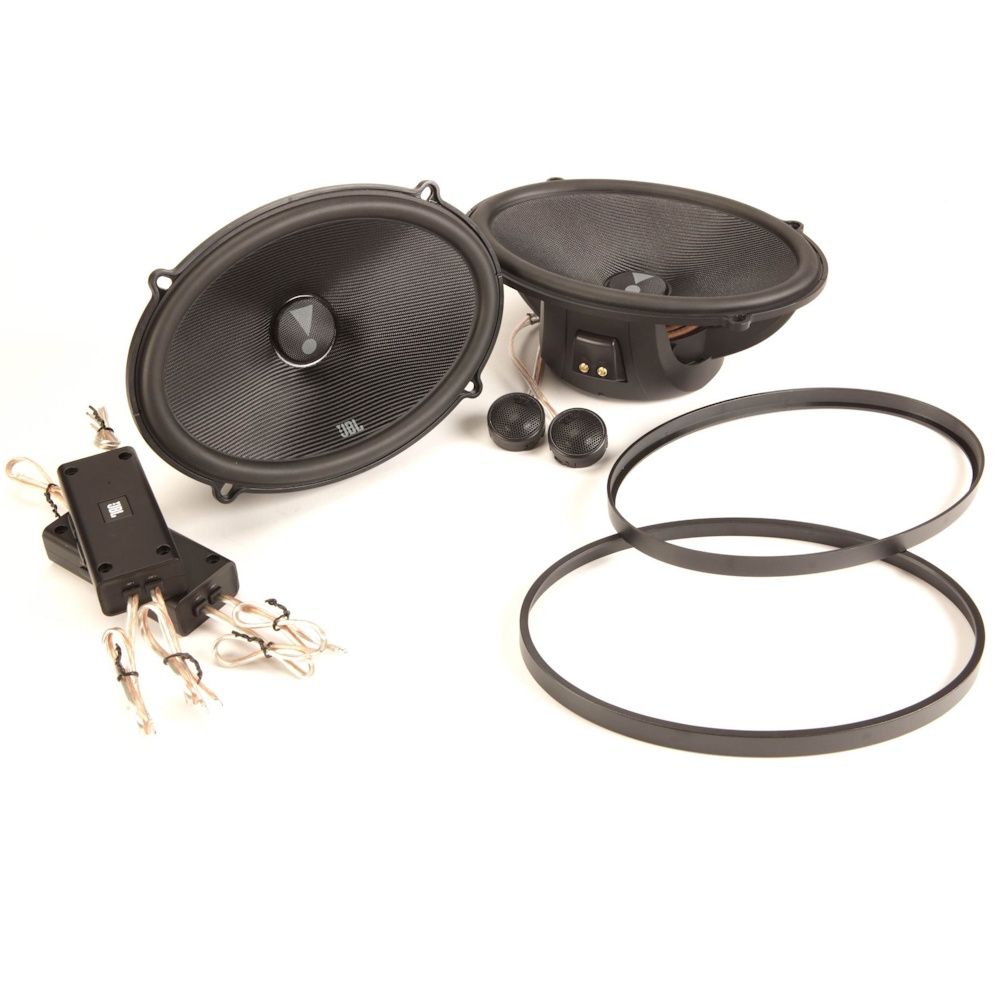

- component speaker system includes 2 woofers, 2 tweeters, and 2 external crossovers

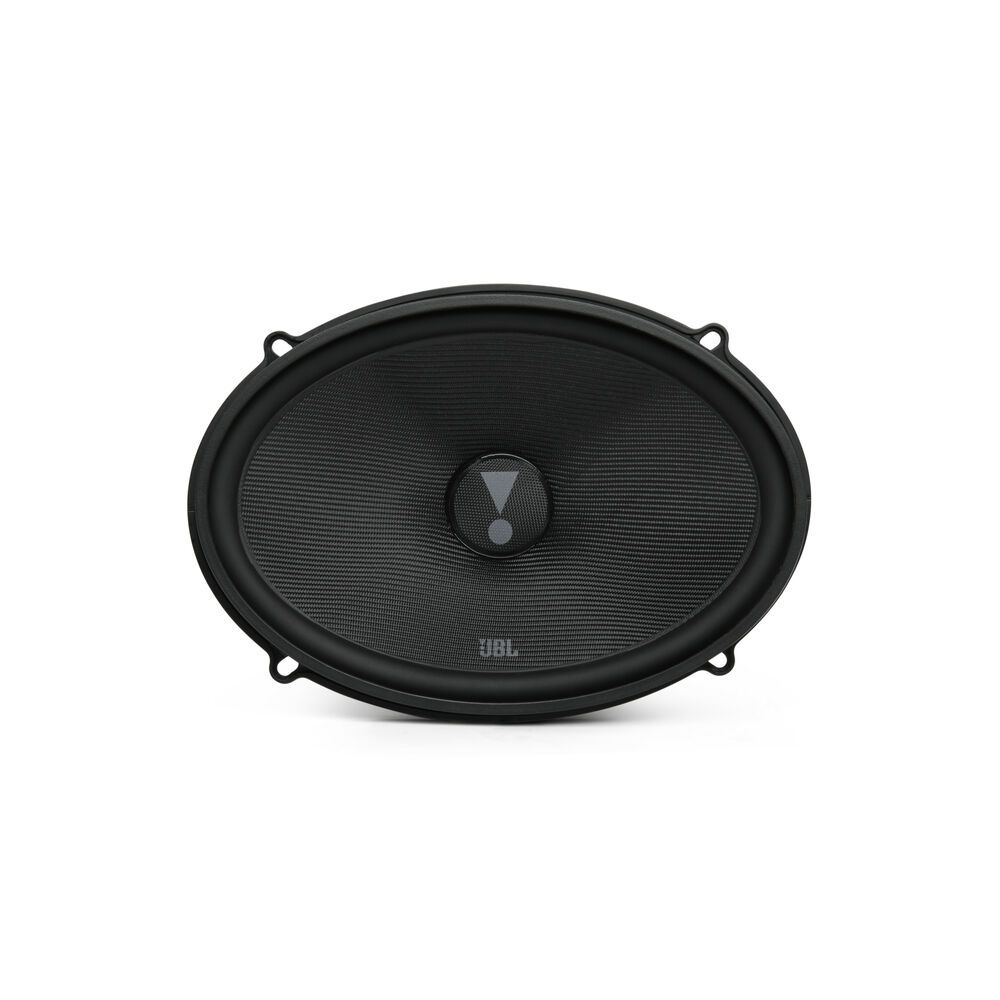

- 6″x9″ Plus One+ glass-fiber woofer cone with hi-roll rubber surround

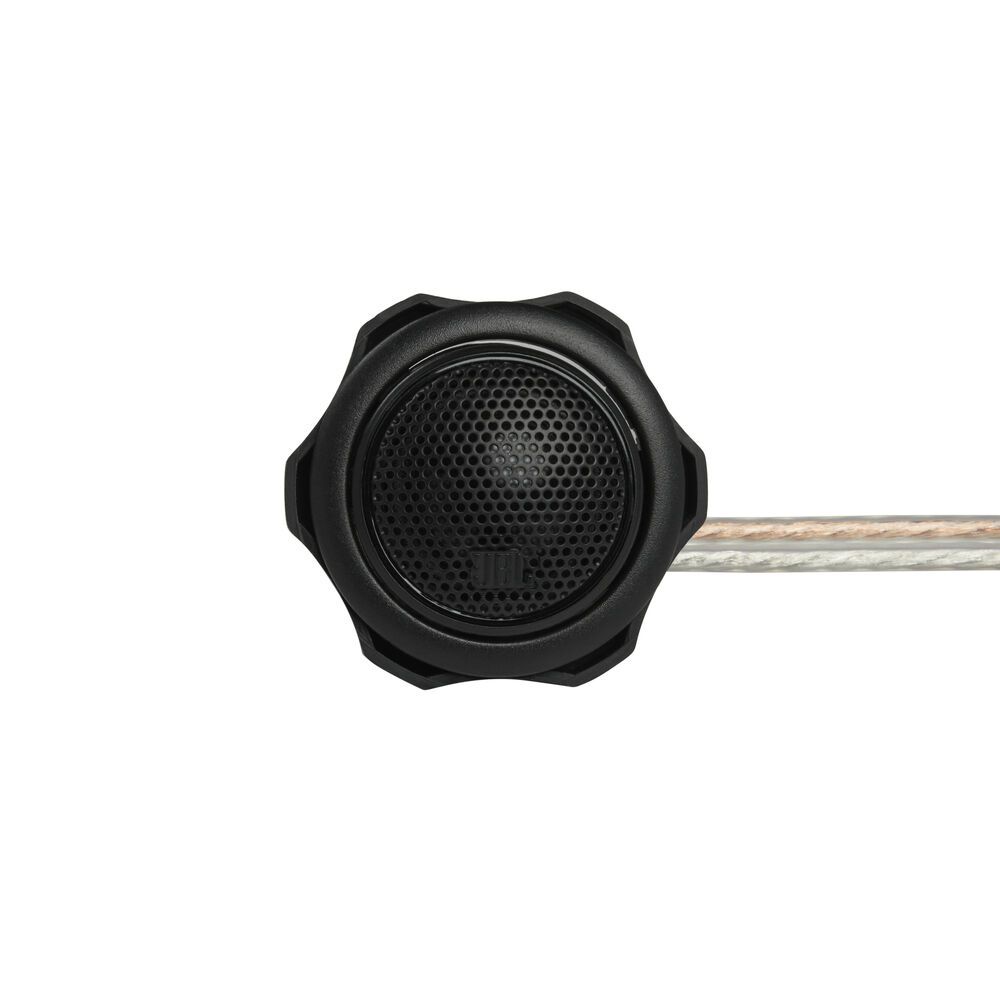

- 3/4″ edge-driven aluminum dome tweeter

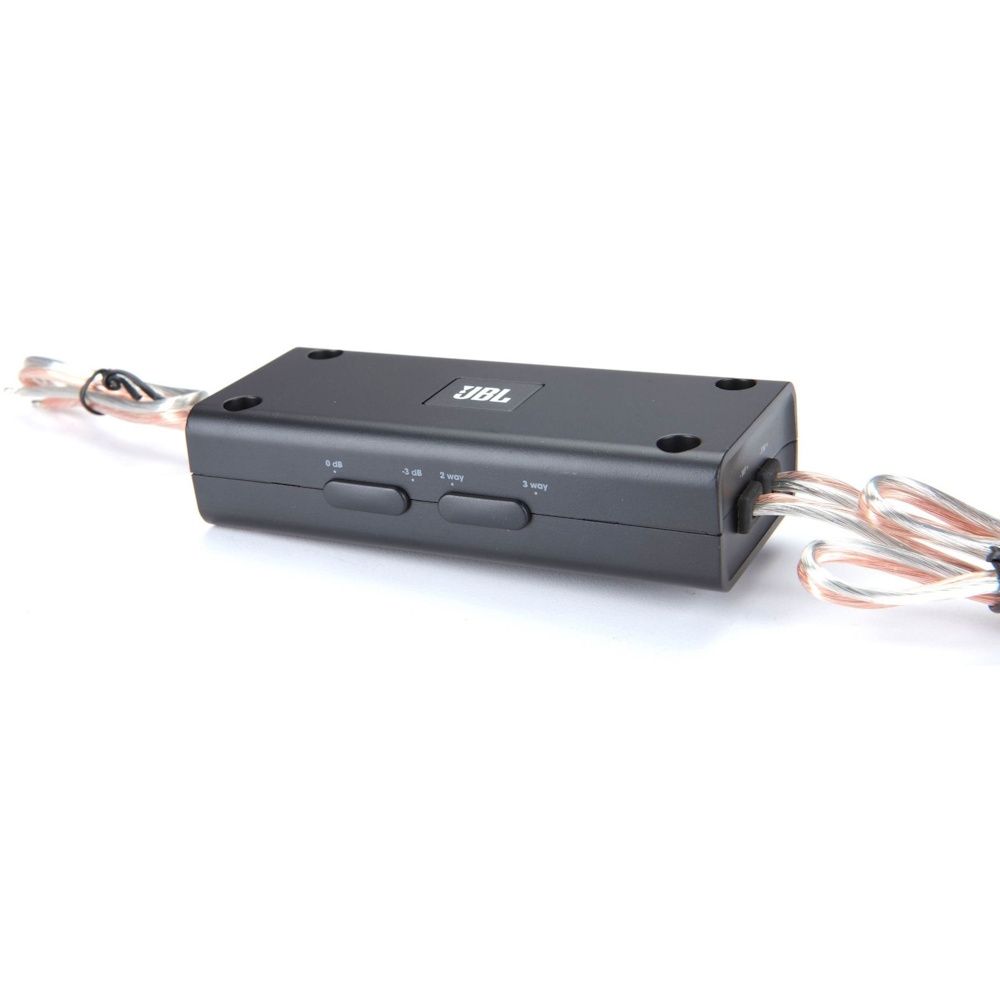

- tweeter level adjustment: 0 or -3 dB
- top-mount depth: 3-3/16
